AIをARに応用するぞ会 → (第13回) ~アプリ完成~
あけましておめでとうございます。
開発メンバーのYです。
前回からだいぶ間が空いてしまいましたね。
最近はYoutubeでおろちんゆーを見るのが日課になってます。
さて、今回は何でもラーメンにしようとする識別器をがんばってなおしました。
以下、目次です。
0. 前回まで
↓前回のブログ
tottorisnow33.hatenablog.com
前回までは android studio上で、webカメラで取得した画像を識別器(ラーメンorパンケーキ)にかけるところまでやりました。
ただ識別結果がラーメン寄りになってしまうので、今回は以下の2つをやっていきます。
・デバッグ環境の整理(RGB, BGR関係がどうなってるか見たい)
・そもそもの識別機がどうだったのかの確認
1. 入力画像のデバッグ出力
まずは、入力画像のデバッグ出力を試みました。
入力画像と識別器のRGB成分が統一されてなかったりするかもしれないですしね。
ただ、ソース上でPC内のフォルダパスを指定してそこにデバッグ画像を出力みたいなことはPC上の仮想端末上でアプリが動いているということから簡単にはできないようでした。
回りくどいですが、エミュレータ上の画像フォルダ内にデバッグ画像を保存する形であれば可能らしいです。
以下のページを参考に実装しました。
akira-watson.com

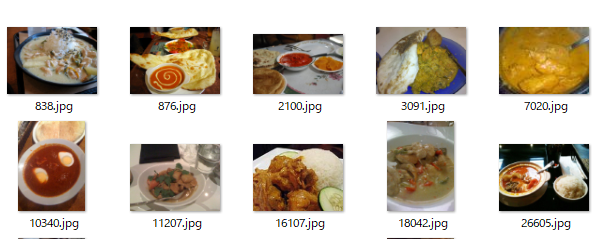

無事エミュレータ内のフォルダに入力画像を保存することができました。これでデバッグしやすくなりました。
画像がカレーになっている理由は口述します。
入力画像はちゃんとRGBで入っていそうですね。
学習もRGBでやってたのでRGB、BGRみたいなやつは問題なさそうです。
コードは最後にまとめて展開します。
2. そもそもの識別機がどうだったのかの確認
識別器がラーメンばっか推してくるということで、識別器を作ったPython環境上で様々な画像を判定してみました。
結果は大半がラーメンに寄ってました。(画像なくてごめんなさい)
そもそも識別器の性能があまりよくなかったっぽいです。
パンケーキとラーメンって両方茶色っぽいので識別が難しかったかもしれないですね。
ということで、再度データセットを漁ったところ良いのがありました。
今回は、カレーと海藻サラダの識別器にしてみます。
また、過学習してるかもということでエポック数 5 、バッチサイズ 16 で学習してみました。
3. 実行結果(アプリ完成)
さっき作ったカレーと海藻の識別器をアプリに入れてみました。

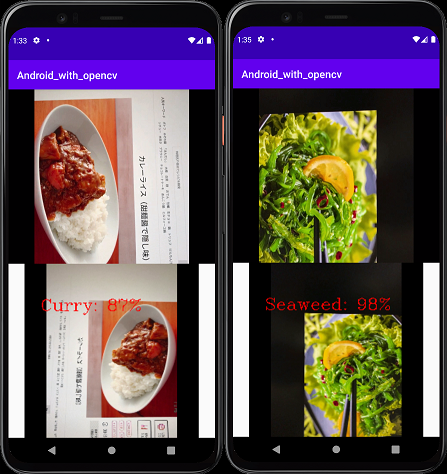

PC画面に映したカレーと海藻サラダを識別してみたところうまくいきました!!
ここまで長かったですね、、、
以下が今回のコードになります。
activity_main.xml
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity"> <LinearLayout android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical"> <androidx.camera.view.PreviewView android:id="@+id/previewView" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_weight="1" /> <ImageView android:id="@+id/imageView" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_weight="0" /> </LinearLayout> </androidx.constraintlayout.widget.ConstraintLayout>
MainActivity.java
package com.example.android_with_opencv; import android.content.ContentValues; import android.content.Context; import android.content.pm.PackageManager; import android.content.res.AssetFileDescriptor; import android.graphics.Bitmap; import android.os.Bundle; import android.os.Environment; import android.provider.MediaStore; import android.util.Log; import android.view.Surface; import android.widget.ImageView; import androidx.annotation.NonNull; import androidx.appcompat.app.AppCompatActivity; import androidx.camera.core.Camera; import androidx.camera.core.CameraSelector; import androidx.camera.core.ImageAnalysis; import androidx.camera.core.ImageProxy; import androidx.camera.core.Preview; import androidx.camera.lifecycle.ProcessCameraProvider; import androidx.camera.view.PreviewView; import androidx.core.app.ActivityCompat; import androidx.core.content.ContextCompat; import androidx.lifecycle.LifecycleOwner; import com.google.common.util.concurrent.ListenableFuture; import org.opencv.android.Utils; import org.opencv.core.Core; import org.opencv.core.CvType; import org.opencv.core.Mat; import org.opencv.core.Point; import org.opencv.core.Rect; import org.opencv.core.Scalar; import org.opencv.core.Size; import org.opencv.imgcodecs.Imgcodecs; import org.opencv.imgproc.Imgproc; import org.tensorflow.lite.Interpreter; import java.io.File; import java.io.FileInputStream; import java.io.FileOutputStream; import java.nio.ByteBuffer; import java.nio.MappedByteBuffer; import java.nio.channels.FileChannel; import java.text.DecimalFormat; import java.util.Date; import java.util.concurrent.ExecutorService; import java.util.concurrent.Executors; import static android.os.Environment.getExternalStorageDirectory; public class MainActivity extends AppCompatActivity { /**カメラパラメータ**/ private static final String TAG = "MyApp"; private int REQUEST_CODE_FOR_PERMISSIONS = 1234;; private final String[] REQUIRED_PERMISSIONS = new String[]{"android.permission.CAMERA", "android.permission.WRITE_EXTERNAL_STORAGE"}; /**ビューの用意**/ private PreviewView previewView; private ImageView imageView; /**カメラのメンバ**/ private Camera camera = null; private Preview preview = null; private ImageAnalysis imageAnalysis = null; private ExecutorService cameraExecutor = Executors.newSingleThreadExecutor(); /** Tensor Flowについての情報を格納したメンバ **/ String ModelPath; Context context; MappedByteBuffer myModel; static { System.loadLibrary("opencv_java4"); } /**************************************** * TensorFlowのモデル取得関数 * **************************************/ private MappedByteBuffer loadModel(Context context, String modelPath) { try { AssetFileDescriptor fd = context.getAssets().openFd(modelPath); FileInputStream in = new FileInputStream(fd.getFileDescriptor()); FileChannel fileChannel = in.getChannel(); return fileChannel.map(FileChannel.MapMode.READ_ONLY, fd.getStartOffset(), fd.getDeclaredLength()); } catch (Exception e) { e.printStackTrace(); return null; } } /**************************************** * 起動時に呼ばれる関数 * andoroidの起動プロセスに組み込まれているメソッドをオーバライドすることで任意の処理を追加している。 * ビューやボタンに対数するイベントハンドラをここで設定 ****************************************/ @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); /**ビューの設定**/ previewView = findViewById(R.id.previewView); imageView = findViewById(R.id.imageView); if (checkPermissions()) { /** TesnsorFlowの読み込み**/ ModelPath = "model_img_recog_curry_seaweed_bn.tflite"; context = MainActivity.this; myModel = loadModel(context, ModelPath); /**************************** * カメラ設定メイン関数 ****************************/ startCamera(); } else { ActivityCompat.requestPermissions(this, REQUIRED_PERMISSIONS, REQUEST_CODE_FOR_PERMISSIONS); } } /**************************************** * カメラの設定(フームごとの処理などをここで設置) ****************************************/ private void startCamera() { /**カメラ取得**/ final ListenableFuture<ProcessCameraProvider> cameraProviderFuture = ProcessCameraProvider.getInstance(this); Context context = this; cameraProviderFuture.addListener(new Runnable() { /**カメラ内のフレームごとの処理をオーバーライド, 画像に関して毎フレーム処理を行う関数を設定する**/ @Override public void run() { try { ProcessCameraProvider cameraProvider = cameraProviderFuture.get(); preview = new Preview.Builder().build(); /**毎フレームの画像処理実行**/ imageAnalysis = new ImageAnalysis.Builder().build(); imageAnalysis.setAnalyzer(cameraExecutor, new MyImageAnalyzer()); CameraSelector cameraSelector = new CameraSelector.Builder().requireLensFacing(CameraSelector.LENS_FACING_BACK).build(); cameraProvider.unbindAll(); camera = cameraProvider.bindToLifecycle((LifecycleOwner)context, cameraSelector, preview, imageAnalysis); preview.setSurfaceProvider(previewView.createSurfaceProvider(camera.getCameraInfo())); } catch(Exception e) { Log.e(TAG, "[startCamera] Use case binding failed", e); } } }, ContextCompat.getMainExecutor(this)); } /**************************************** * 毎フレームの画像処理を管理するクラス ****************************************/ private class MyImageAnalyzer implements ImageAnalysis.Analyzer { /**識別時の情報**/ final int CLASS_NUM = 2; final int IMG_WIDTH = 224; final int IMG_HEIGHT = 224; private long pre_recog_time = 0; private int count = 0; /**識別結果値格納配列**/ float[][] output = new float[1][CLASS_NUM]; /**識別クラス**/ private String STR_CLASS_0 = "Pug"; private String STR_CLASS_1 = "Bulldog"; private String STR_CLASS_2 = "Other"; /********************************************** **カメラ画像を引数とするメソッドをオーバーライド* **********************************************/ @Override public void analyze(@NonNull ImageProxy image) { /**カメラ画像をopencvで取得**/ Mat matFromCamera = getMatFromImage(image); /**推論入力画像(RGB)を作成**/ Mat matRead = new Mat(); Imgproc.resize(matFromCamera, matRead, new Size(IMG_WIDTH, IMG_HEIGHT), 0,0, Imgproc.INTER_LINEAR); Imgproc.cvtColor(matRead, matRead, Imgproc.COLOR_BGR2RGB, 3); /**出力用画像(RGB)を用意**/ Mat matOutput = new Mat(); Imgproc.resize(matFromCamera, matOutput, new Size(IMG_WIDTH, IMG_HEIGHT), 0,0, Imgproc.INTER_LINEAR); Imgproc.cvtColor(matOutput, matOutput, Imgproc.COLOR_BGR2RGB, 3); /** 1秒間隔で推論が行われるようにするため、時刻を取得 **/ final Date date = new Date(); if (pre_recog_time == 0) { pre_recog_time = date.getTime(); Log.i(TAG, "FIRST pre_recog_time = " + pre_recog_time); } /****************************** * 1秒ごとに実施される推論処理 ******************************/ if (1000 <= date.getTime() - pre_recog_time) { try (Interpreter interpreter = new Interpreter(myModel)) { /*****************************************/ /*********** 推論の実施 *******************/ /*****************************************/ System.out.println("Into interpreter"); /* [0,255]の画像を[0.0, 1.0]に正規化 */ float[][][][] testImg = new float[1][IMG_HEIGHT][IMG_WIDTH][3]; for (int i = 0; i < IMG_WIDTH; i++) { for (int j = 0; j < IMG_HEIGHT; j++) { double[] value = matRead.get(j, i); testImg[0][j][i][0] = (float) value[0] / 255.0f; testImg[0][j][i][1] = (float) value[1] / 255.0f; testImg[0][j][i][2] = (float) value[2] / 255.0f; } } /**推論実施**/ interpreter.run(testImg, output); /*********** デバッグ処理ここから *********/ Mat matReadDebug = new Mat(); Imgproc.cvtColor(matRead, matReadDebug, Imgproc.COLOR_BGR2RGB, 3); final long currentTimeMillis = System.currentTimeMillis (); final String appName = getString (R.string.app_name); final String galleryPath = Environment.getExternalStoragePublicDirectory ( Environment.DIRECTORY_PICTURES) .toString (); final String albumPath = galleryPath + "/" + appName; final String photoName = "img_" + String.format("%06d", count) + ".png"; final String photoPath = albumPath + "/" + photoName; final ContentValues values = new ContentValues(); // ファイル名 values.put(MediaStore.Images.Media.DISPLAY_NAME, photoName); values.put(MediaStore.MediaColumns.DATA, photoPath); values.put(MediaStore.Images.Media.MIME_TYPE, "image/png"); values.put(MediaStore.Images.Media.TITLE, appName); values.put(MediaStore.Images.Media.DESCRIPTION, appName); values.put(MediaStore.Images.Media.DATE_TAKEN, currentTimeMillis); // 書込み時にメディア ファイルに排他的にアクセスする values.put(MediaStore.Images.Media.IS_PENDING, 1); File album = new File (albumPath); if (! album.isDirectory () &&! album.mkdirs ()) { Log.e (TAG, "Failed to create album directory at" + albumPath); } Log.i(TAG, "photoPath = " + photoPath); boolean isSaved = Imgcodecs.imwrite(photoPath, matReadDebug); Log.i(TAG, "isSaved = " + String.valueOf(isSaved)); values.clear(); // 排他的にアクセスの解除 values.put(MediaStore.Images.Media.IS_PENDING, 0); /*********** デバッグ処理ここままで *********/ } catch (IllegalArgumentException e) { System.out.println("IllegalArgumentException!!!!!!!!!!!!!!!!!!!!!!!"); System.out.println(e); } count = count + 1; pre_recog_time = date.getTime(); } /**BitMapの仕様と合わせるため、行列を転置**/ matOutput = matOutput.t(); Imgproc.resize(matOutput, matOutput, new Size(1000, 1200)); /* 結果の描画 */ // String result_0 = String.valueOf((int)(output[0][0]*100)) + "%"; // String result_1 = String.valueOf((int)(output[0][1]*100)) + "%"; float temp = 1- (output[0][0] + output[0][1]); // String result_2 = String.valueOf((int)(temp)*100) + "%"; String result_0 = new DecimalFormat("00.0").format (output[0][0]*100) + "%"; String result_1 = new DecimalFormat("00.0").format (output[0][1]*100) + "%"; String result_2 = new DecimalFormat("00.0").format (temp*100) + "%"; /**推論結果を画像に書き込み**/ if(0.5 < output[0][0]) { /*最大がラーメン*/ Imgproc.putText(matOutput, STR_CLASS_0, new Point(20, 80), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, result_0, new Point(520, 80), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_1, new Point(20, 170), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_1, new Point(520, 170), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_2, new Point(20, 260), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_2, new Point(520, 260), 3, 2.5, new Scalar(0, 0, 0), 3); } else if(0.5 < output[0][1]) { /*最大が海藻*/ Imgproc.putText(matOutput, STR_CLASS_0, new Point(20, 80), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_0, new Point(520, 80), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_1, new Point(20, 170), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, result_1, new Point(520, 170), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_2, new Point(20, 260), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_2, new Point(520, 260), 3, 2.5, new Scalar(0, 0, 0), 3); } else if(0.5 < 1.0 - (output[0][0] + output[0][1])) { /*最大がその他*/ Imgproc.putText(matOutput, STR_CLASS_0, new Point(20, 80), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_0, new Point(520, 80), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_1, new Point(20, 170), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, result_1, new Point(520, 170), 3, 2.5, new Scalar(255, 0, 0), 3); Imgproc.putText(matOutput, STR_CLASS_2, new Point(20, 260), 3, 2.5, new Scalar(0, 0, 0), 3); Imgproc.putText(matOutput, result_2, new Point(520, 260), 3, 2.5, new Scalar(0, 0, 0), 3); } /**画像処理した行列をBitMapに変換**/ Bitmap bitmap = Bitmap.createBitmap(matOutput.cols(), matOutput.rows(),Bitmap.Config.ARGB_8888); Utils.matToBitmap(matOutput, bitmap); /** BitMapをビューに設定 **/ runOnUiThread(new Runnable() { @Override public void run() { imageView.setImageBitmap(bitmap); } }); /* Close the image otherwise, this function is not called next time */ image.close(); } /**************************************** * OpenCvの画像を取得関数 ****************************************/ private Mat getMatFromImage(ImageProxy image) { /* https://stackoverflow.com/questions/30510928/convert-android-camera2-api-yuv-420-888-to-rgb */ ByteBuffer yBuffer = image.getPlanes()[0].getBuffer(); ByteBuffer uBuffer = image.getPlanes()[1].getBuffer(); ByteBuffer vBuffer = image.getPlanes()[2].getBuffer(); int ySize = yBuffer.remaining(); int uSize = uBuffer.remaining(); int vSize = vBuffer.remaining(); byte[] nv21 = new byte[ySize + uSize + vSize]; yBuffer.get(nv21, 0, ySize); // vBuffer.get(nv21, ySize, vSize); // uBuffer.get(nv21, ySize + vSize, uSize); uBuffer.get(nv21, ySize, uSize); vBuffer.get(nv21, ySize + uSize, vSize); Mat yuv = new Mat(image.getHeight() + image.getHeight() / 2, image.getWidth(), CvType.CV_8UC1); yuv.put(0, 0, nv21); Mat mat = new Mat(); Imgproc.cvtColor(yuv, mat, Imgproc.COLOR_YUV2BGR_I420, 3); return mat; } } /**************************************** * TensorFlowの読み込みチェック ****************************************/ private boolean checkPermissions() { for(String permission : REQUIRED_PERMISSIONS) { if(ContextCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED) { return false; } } return true; } }
4. 次回やること
ついに実用化できそうなアプリができたということで、
次回はアプリの体裁を整えて、
カレーと海藻よりも実用的な識別をできるようにしていこうと思います。
